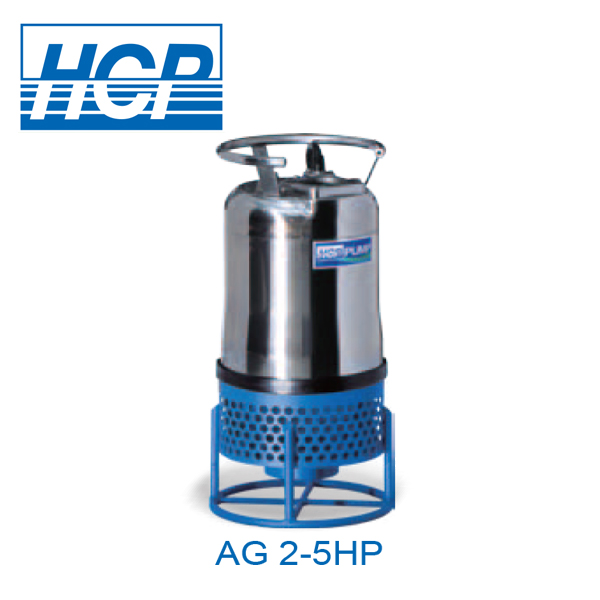

HCP – AG Series

FEATURES
• Designed for construction job. The light weight of pump body makes these pumps possibly to be carried to any corners of construction sites for dewatering.
• Design of cooling jacket. When pump is pumping, the water flow between cooling jacket and motor frame, which reduce temperature of motor. Suitable for long term operation.
• Motor is applied with epoxy coating which increase corrosion resistance on metal parts and extend the service life of pump.
• A wide range of impeller designs to choose from. Pump are equipped with High Chrome Alloy Steel (HiCrFC) impeller and wear ring. The hardness of High Chrome Alloy Steel can reach 55 ~ 60 Rockwell scale which provides extreme abrasion resistant ability to handle the hard particles suspended in water of construction site.
• An agitator is fixed on impeller, which produce strong water current, raising and mixing sediment with water for pumping. The agitator is made of ductile cast iron (FCD700).

APPLICATION
• Civil engineering and other infrastructure water drainage Applications.
• Tunnel and mining engineering water drainage.
• River improvement project and discharge of suspend sediments (such as gravel sand).
• Sand sediment water drainage and other applications of water drainage containing solid sediments.
