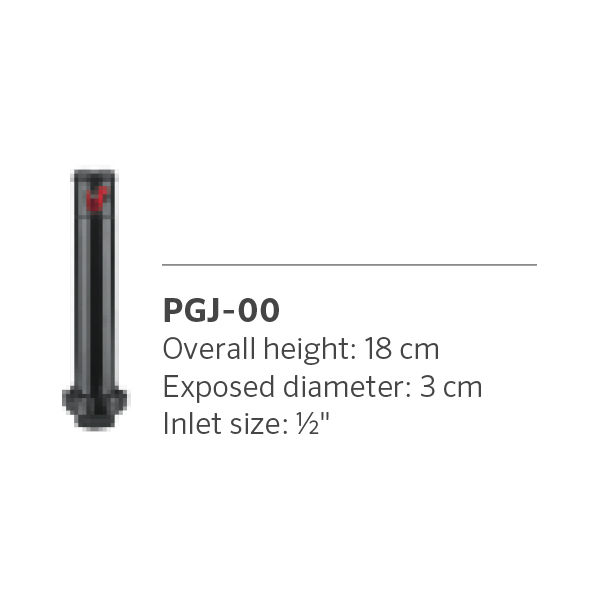

PGJ

FEATURES
• Models: Shrub, 10 cm, 15 cm, 30 cm
• Arc setting: 40° to 360°
• Nozzle choices: 8
• Nozzle range: 0.75 to 5.0
• Standard factory installed nozzle: 2.0 only
• Factory installed rubber cover
• Through-the-top arc adjustment
• QuickCheck™ arc mechanism
• Water lubricated gear-drive
• Warranty period: 2 years
►► Headed and slotted set screw
►► Optional reclaimed water ID
►► Drain check valve (up to 2 m of elevation)

OPERATING SPECIFICATIONS
• Radius: 4.3 to 11.6 m
• Flow: 0.13 to 1.23 m3/hr; 2.2 to 20.5 l/min
• Recommended pressure range: 1.7 to 3.8 bar; 170 to 380 kPa
• Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
• Precipitation rates: 15 mm/hr approximately
• Nozzle trajectory: 15° approximately
